Built on TRUST.


Based on decades of experience, Waldemar Link created a comprehensive knee system that covers all aspects of modern total knee arthroplasty from cruciate retaining, posterior stabilized to stemmed revision variants with high-end user-friendly instrumentation.



View All Features

The LinkSymphoKnee is a complete system for primary total knee replacement to revision solutions.


The LinkSymphoKnee has a wide range of implant sizes with 14 femoral and 10 tibial sizes and provides a 2up - 2down compatibility between femoral and tibial components. The components are made from high-end materials. Thus, all variants are additionally available with LINK PorEx surfaces which reduce the release of metal ions. All poly components, such as articular surfaces and patella, are available either in UHMWPE or in E-dur Polyethylene (highly cross-linked PE with antioxidant vitamin E). The system comes with state-of-the-art streamlined instrumentation, which allows an optimal surgical worflow and is highly adjustable to the user‘s needs.

COMPLETE SYSTEM FROM PRIMARY TO REVISION

WIDE RANGE OF SIZES

HIGH-END MATERIALS


COMPLETE SYSTEM FROM PRIMARY TO REVISION

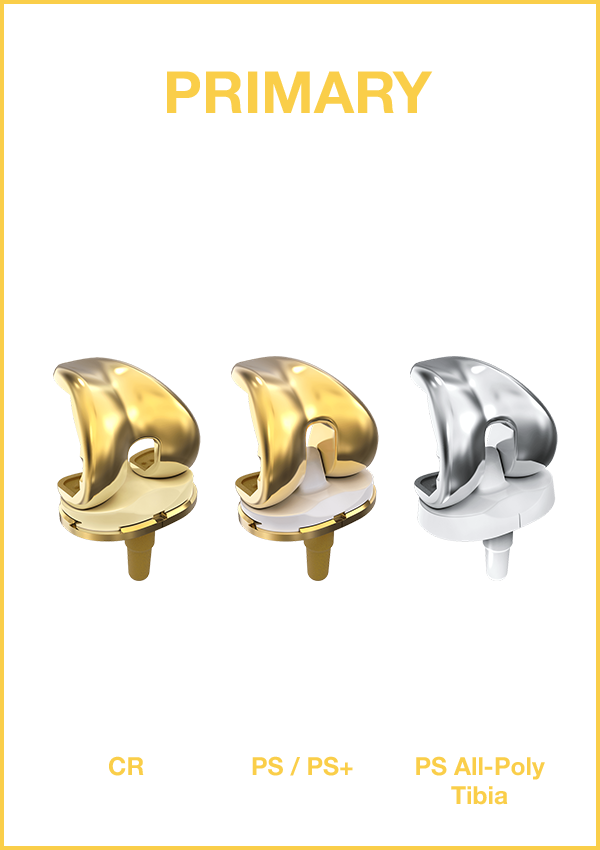

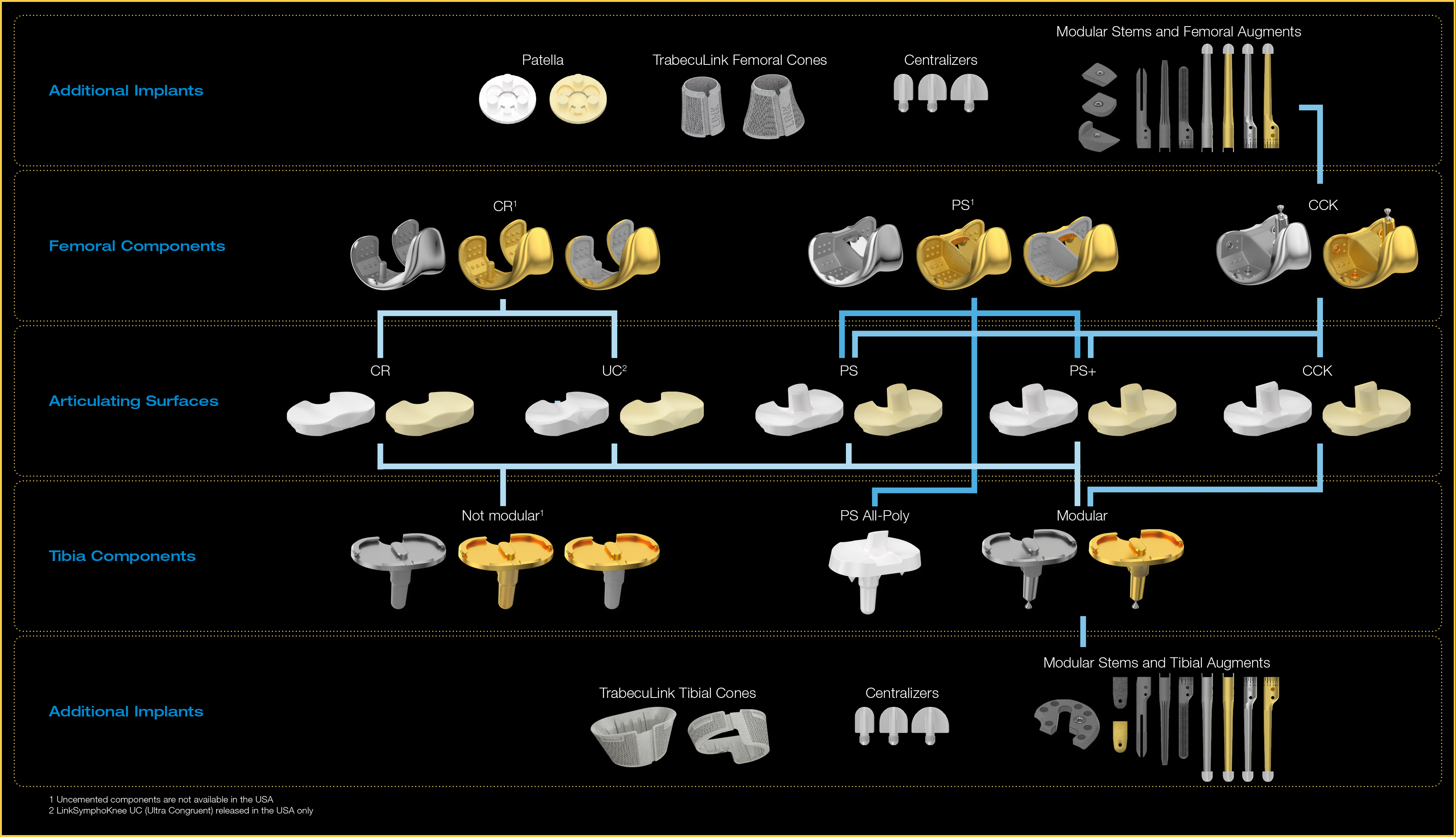

The LinkSymphoKnee system is a fixed bearing system with different constraint levels, such as cruciate ligament conserving (CR), cruciate ligament replacing (PS and PS+) and revision options (CCK). The high compatibility between the components provides a high intraoperative flexibility. All components are available as LINK PorEx versions.






1. Soft Tissue Friendly Anterior Flange


2. Wide Proximal Trochlea


3. Lateralized Trochlear Groove


4. Anatomical Notch Geometry





1. Bone Conserving Box Geometry


2. Post Engagement at 60° Flexion


3. High PS Cam Location


4. SpheroGrip Macrostructure Provides for a Homogeneous
Bone Cement-Implant Interface and Uniform Force Transmission
in the Cement Mantle3

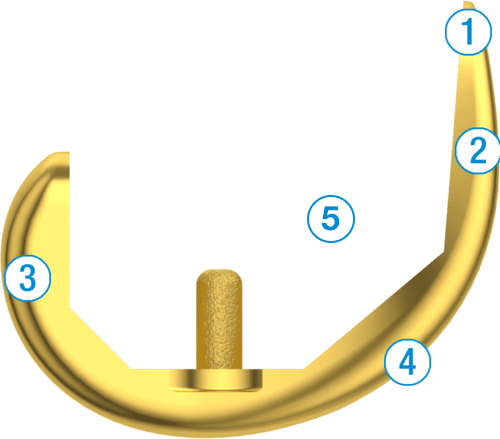

1. 4.5° Anterior Flange


2. Low Profile Patella Flange


3. Gently Decreasing Flexion Radius


4. Graduated Trochlear Groove Depth


5. Harmonic Growth between Sizes (3mm in A/P)

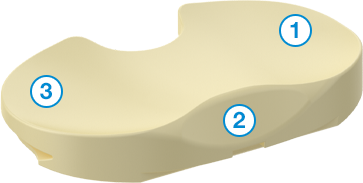

1. Dual Radius of Curvature Designed to Optimize Kinematics


2. High Flex Recess for Patellar Ligament


3. Flatter Mediolateral Edge at Posterior Facet for Up Down Femoral Compatibility





1. Forgiving Anterior Profile


2. 3º Posterior Slope


3. Posterior and Central Dovetail Locking Feature


4. E-Dur Vitamin E Infused Polyethylene1





1. PS/PS+ Jump Height = 17mm


2. PS Constraint Free to Rotate


3. PS+ Constraint Constrained 3º IE and VV


4. Anterior Recess For Patella Ligament Wrapping


5. E-Dur Vitamin E Infused Polyethylene1





1. 5º Sloped Post Increases Stability


2. Posterior Chamfer Designed to Reduce Impingement


3. 0º Posterior Slope


4. Posterior and Central Dovetail Locking Feature










1. Robust Central and Posterior Dovetail Locking Detail


2. Antirotation Island Guides Bearing Implantation


3. Flattened Anterior Lip Designed To Reduce Bearing Insertion Angle


4. Keel and Fin Designed to Protect Against Rotational Forces

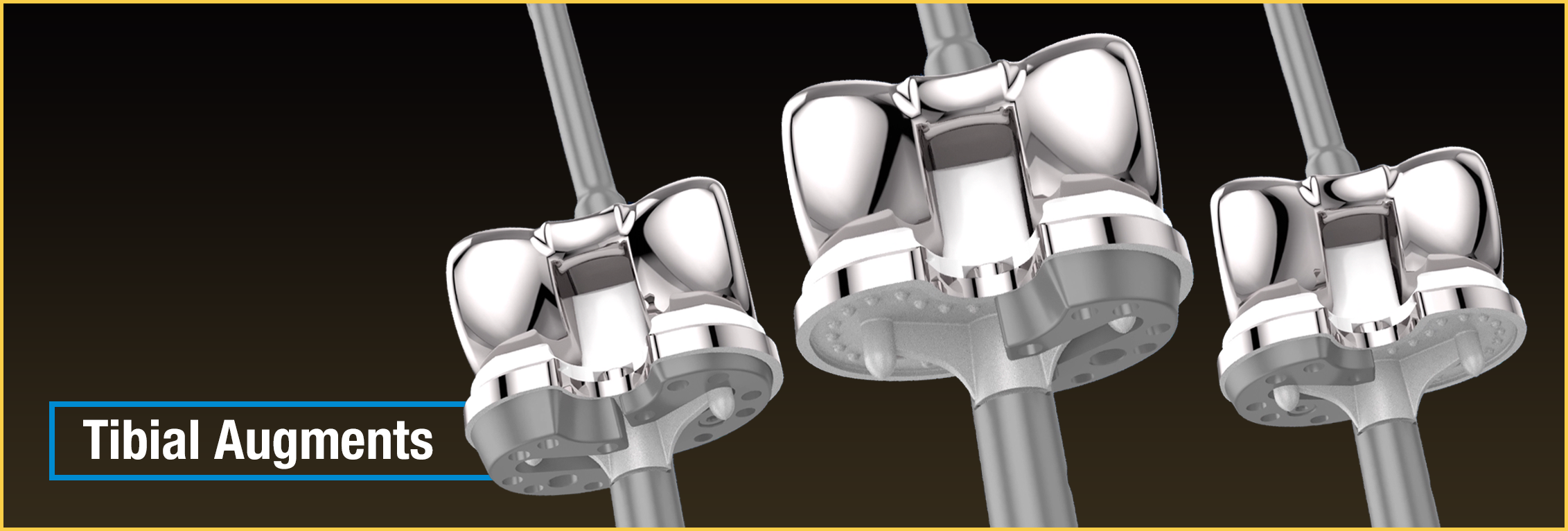

Femoral and Tibial Augments





Modular Stems Options





Compatible with LINK FlexiCones

The LinkSymphoKnee system is compatible with LINK’s TrabecuLink FlexiCones.

WIDE RANGE OF SIZES

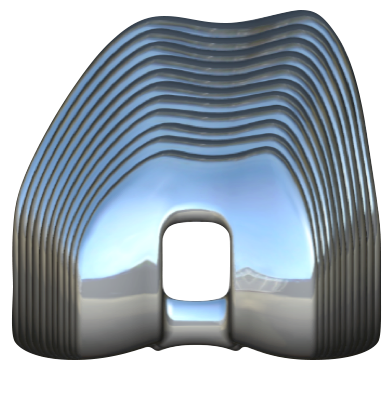

14 femoral & 10 tibial sizes

2up - 2down Compatibility

HIGH-END MATERIALS




E-DUR

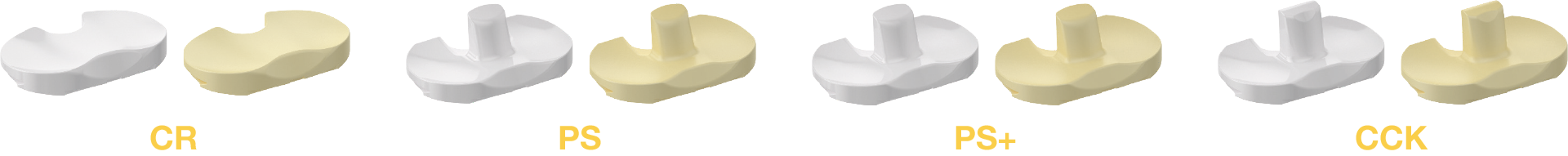

All CR, PS, PS+, & CCK Poly inserts are available in UHMWPE and E-DUR, which is Vitamin E infused cross-linked polyethylene1

In the production of Vit-E plateaus, vitamin E is used as an antioxidant in order to protect the material by neutralizing the free radicals created by highly crosslinking. The product's mechanical proper­ties and biocompatibility are preserved 2,3,4,5.

Highly Cross-Linked by irradiation

Improved wear resistance for delamination and abrasion demonstrated in in vitro testing.6,7

Vitamin-E-Doped

Stabilizing of UHMWPE by enrichment with Vitamin E respectively synthetic available product alpha-tocopherol. Reduction of free radicals improves durability8

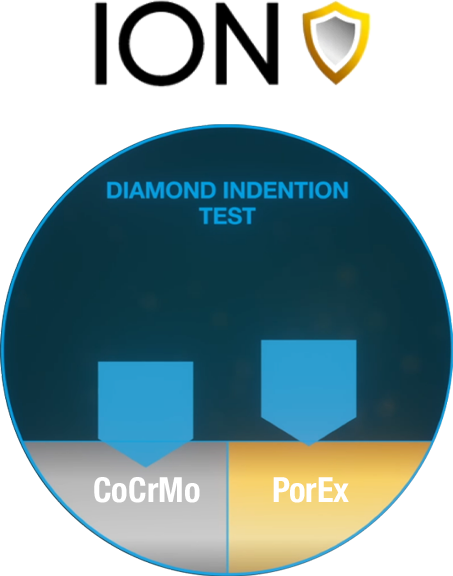

LINK PorEx

All LinkSymphoKnee metal components are available with the LINK PorEx ceramic-like surface.

LINK PorEx serves as an Ion shield, as a ceramic coating significantly reduces
the metal ion release of the underlying metal substrate9.

• Decreased metal ion release9

• Increased scratch resistance10

• Lower friction coefficient10

• Increased fatigue strength10

• Increased hardness9

STREAMLINED INSTRUMENTS


The LinkSymphoKnee System includes streamlined, lightweight and ergonomic instrument sets, allowing for straightforward workflow and high reproducibility. Multi-purpose instruments and elaborate trial components help to reduce the amount of instruments and number of trays, thus enhancing the intra-operative handling and flexibility.

General Instruments

Femoral/Tibial Instruments

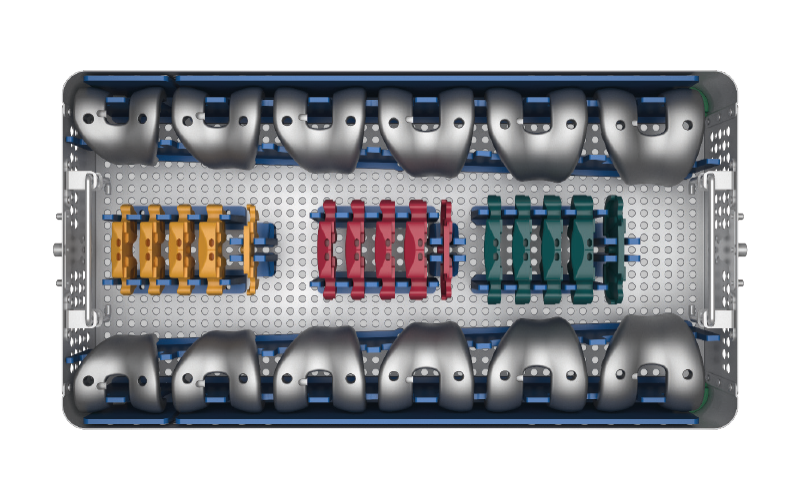

CR Instruments & Trials

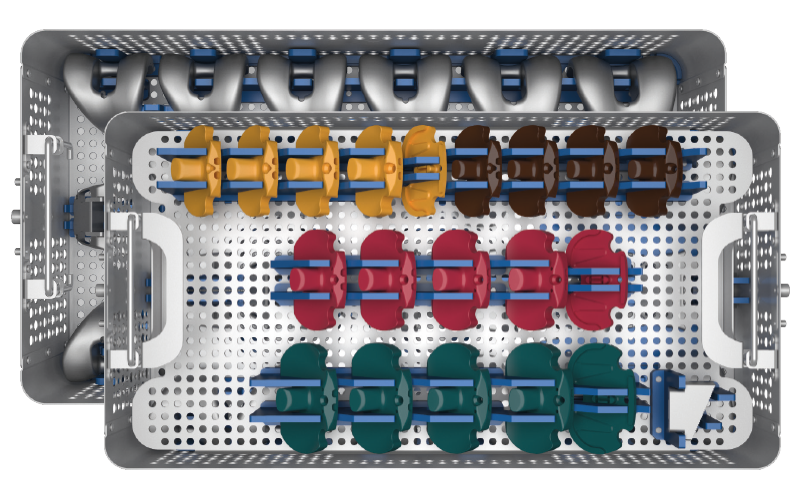

PS Instruments & Trials

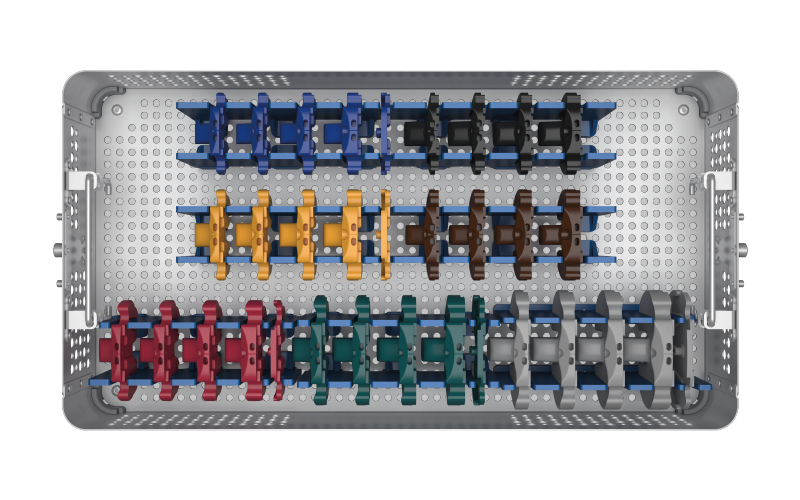

PS+ Articulating Surfaces Trials

CCK Instruments & Trials

Patella Instruments & Trials

Femoral/Tibial Instruments
Micro-Sizes

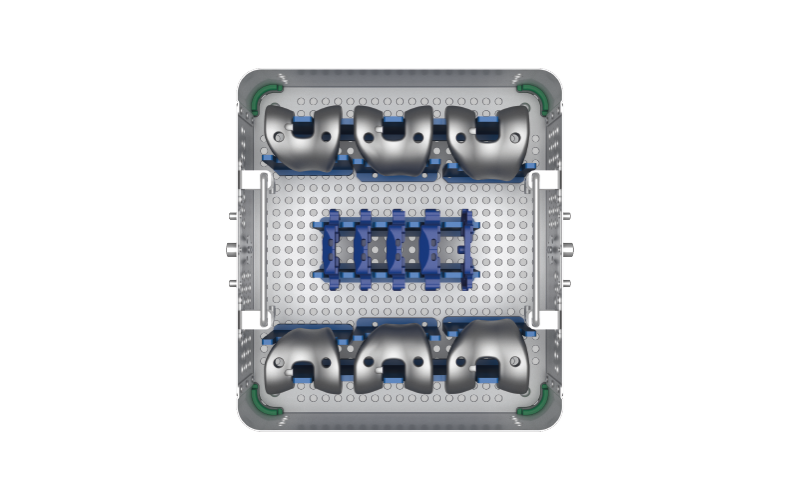

CR Instruments & Trials
Micro-Sizes

PS Instruments & Trials
Micro-Sizes

CCK Instruments & Trials
Micro-Sizes

Femoral/Tibial Instruments
Macro-Sizes

CR Instruments & Trials
Micro-Sizes

PS Instruments & Trials
Macro-Sizes

CCK Instruments & Trials
Macro-Sizes

CR Instruments & Trials
Wide-Sizes

PS Instruments & Trials
Wide-Sizes

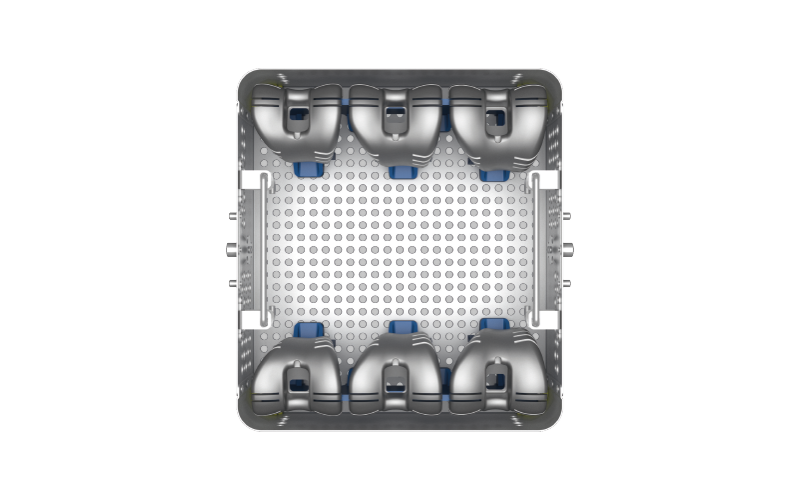

CCK Instruments & Trials
Wide-Sizes

SURGICAL TECHNIQUE




LinkSymphoKnee - Primary

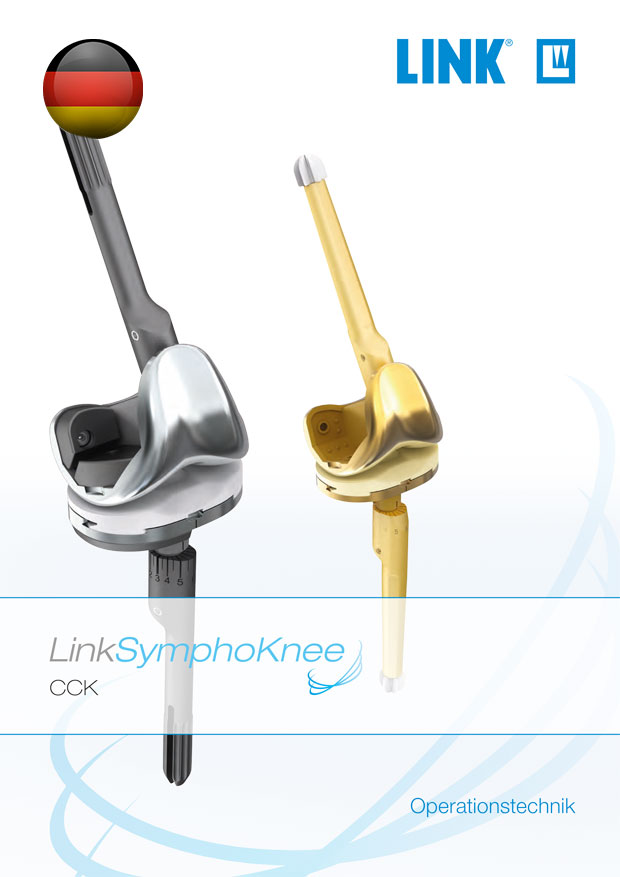

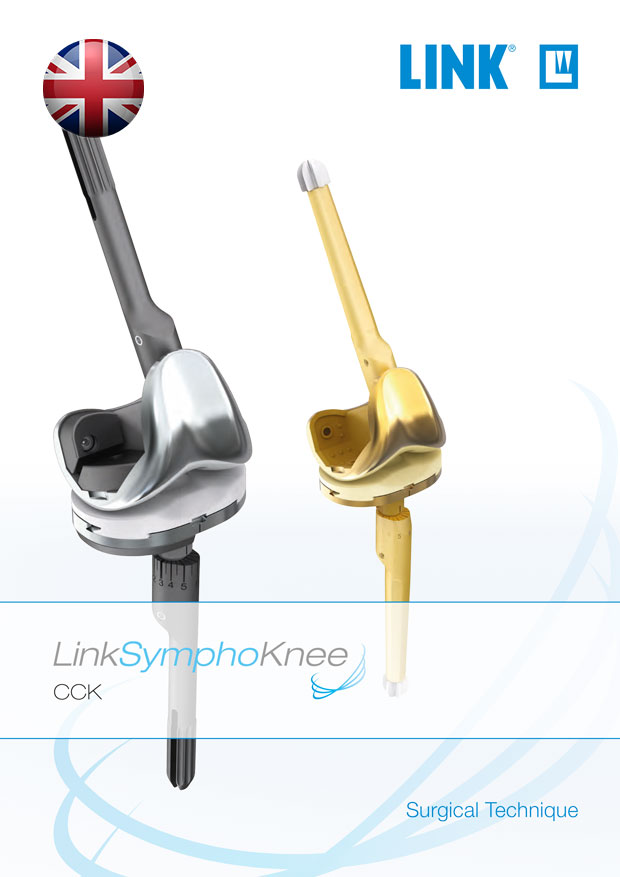

LinkSymphoKnee - Revision

LinkSymphoKnee - Perseus smart cutting guide

Instruments

Insert Inlay

DOWNLOADS




ADDITIONAL DOWNLOADS

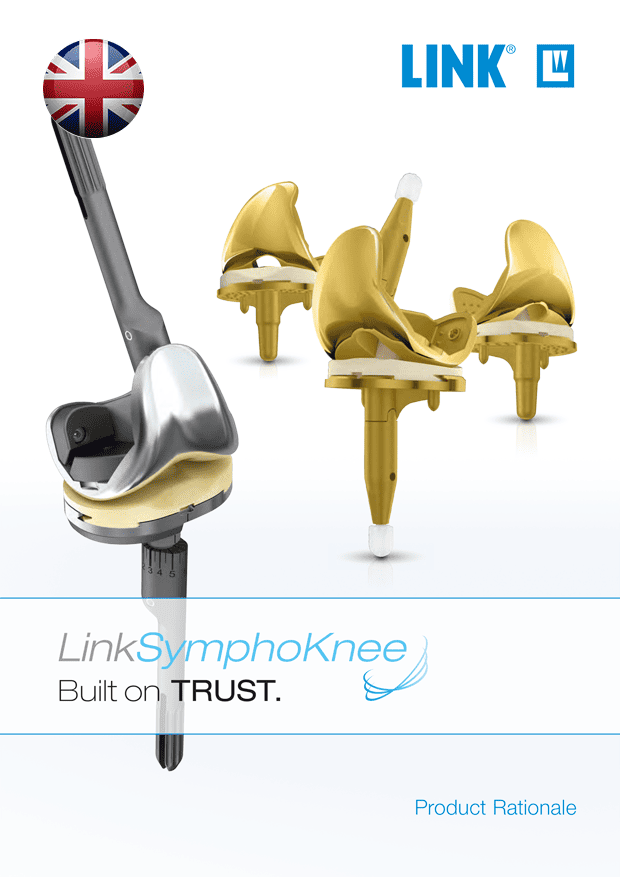

LinkSymphoKnee
Overview

Download

LinkSymphoKnee
Orthokey Perseues

Download

LinkSymphoKnee PS
Alejandro Gonzalez Della Valle MD

Download

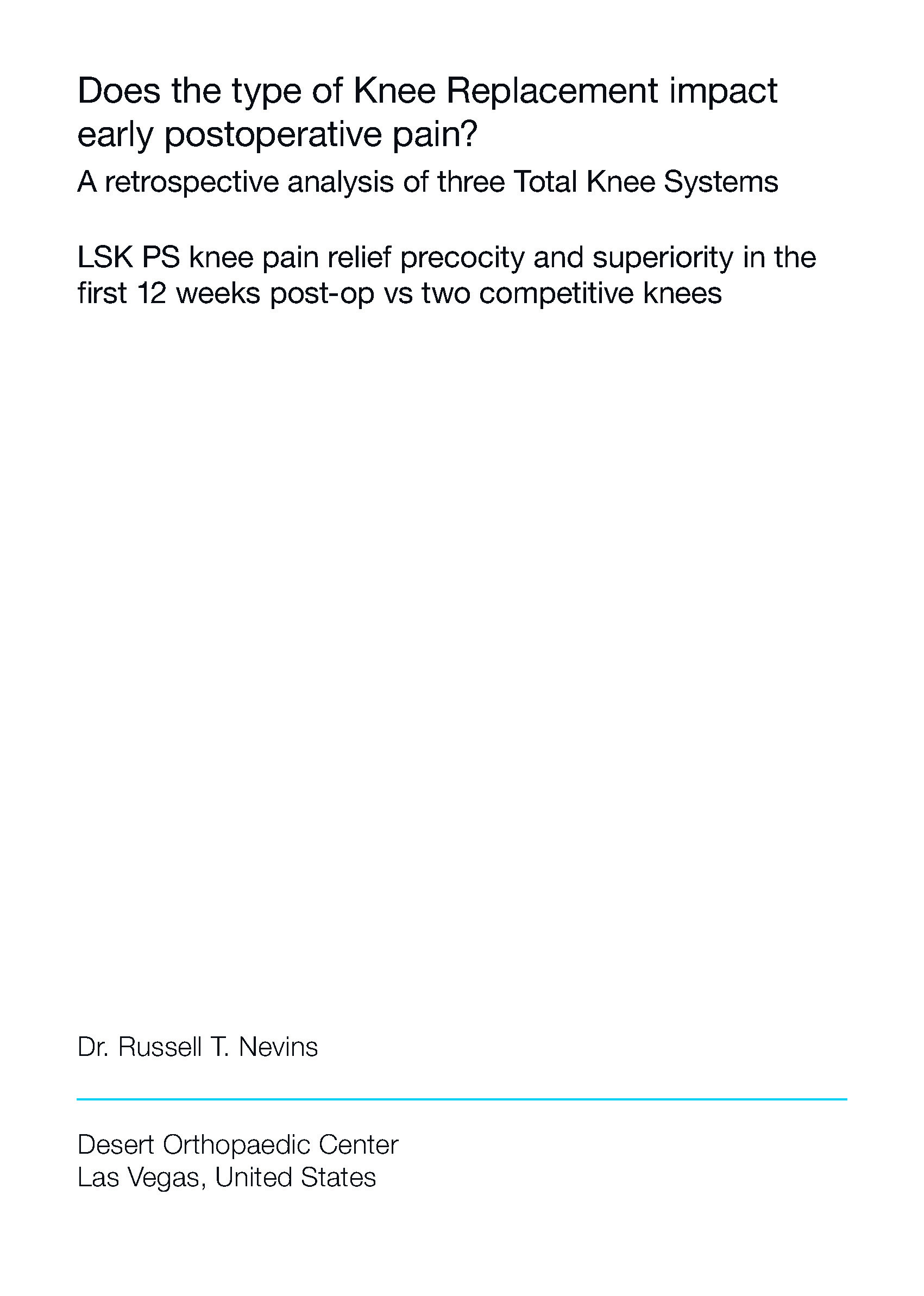

LinkSymphoKnee PS All Poly
Russel T. Nevins MD

Download

LinkSymphoKnee CR
Brett R. Levine MD

Download

LinkSymphoKnee
PorEx

Download

LINK PorEx


Download


directLINK Special Edition LinkSymphoKnee




FAQs


  • The gradually decreasing flexion radius (J-curve) reduces mid-flexion instability
  • Smooth transition in sagittal curvature
  • Higher congruency in extension
  • PS Post and Cam mechanism engagement at 60° flexion
  • PS Post and Cam mechanism limits posterior tibia translation and facilitates femoral rollback
  • Concave Cam design increases surface contact between Cam and Post and reduces pressure peaks.
  • Homogenous growth of 3 mm from size to size size in anterior direction.
  • Posterior aspect constant as usual in all posterior referencing systems

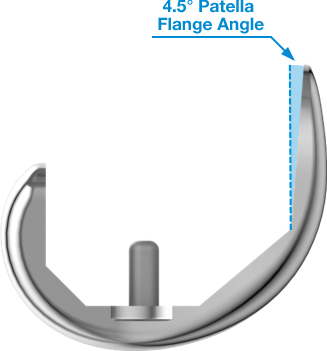

  • The anterior Patella Flange angle amounts to 4,5°
  • The thickness is constant and amounts to 9 mm in all Femoral Components
  • One spacer block is required to assess the extension and flexion gap.

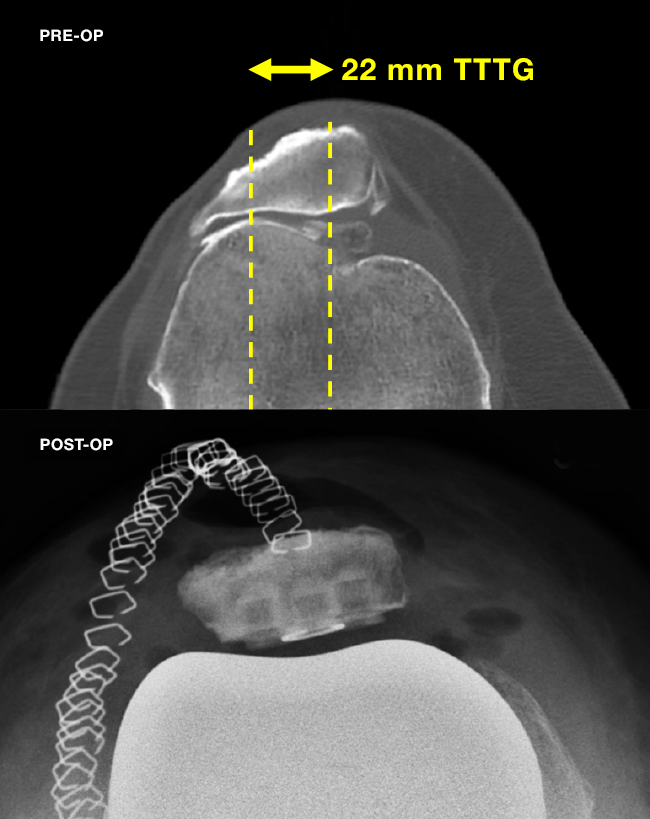

PATIENT CASES
